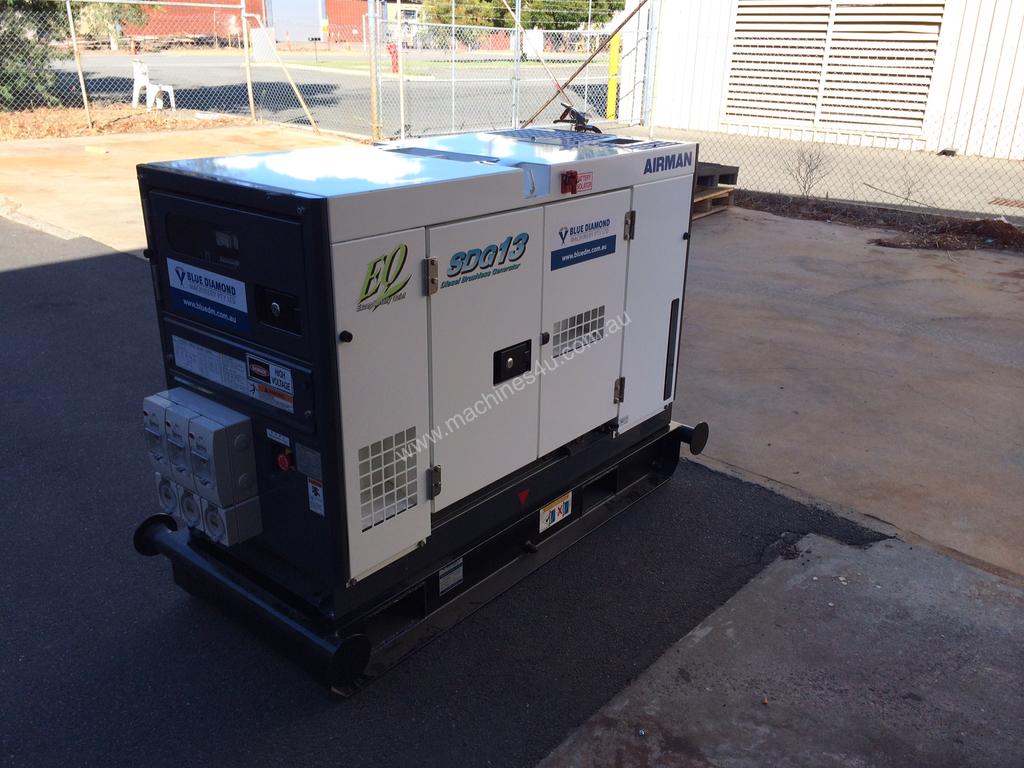

SDG 13 Airman KUBOTA Diesel Generator 13 KVA -415V
SDG 13 Airman KUBOTA Diesel Generator 13 KVA -415V : Ask for Price
Blue Diamond Xtreme Series Generators - By AIRMAN JAPAN
Premium Generators for our customers who demand the absolute best
Xtreme Reliability – Airman Japan Designed Engineered and Manufactured for use in Rental, Construction and Mining
Xtreme Efficiency - Using only the best premium Japanese engines such as Kubota and Isuzu.
Xtreme Performance – Maintenance Free brushless Alternator and minimal soundwave distortion for sensitive equipment use
Xtreme Mobility –Exceptionally compact and lightweight
We are your Local Australian based company, call MARK for that personal experience, that you won't get anywhere else. We are your 1 stop shop, stocking everything including parts for all our products.
Xtreme Protection – All Weather construction to eliminate rain penetration of the machine
Xtreme Environmental awareness – Ultra Quiet (60 DB at 1 M range!) and meets Japans very tight emissions regulations.
Xtreme Back Up – Not only are these ultimate Generators supported by 12 month International Warranties but Blue Diamond Machinery operates a mechanical workshop and has mobile field support.
RATED OUTPUT: 10.5 KVA.
POWER FACTOR: 80%
CLASS OF RATING: CONTINUOUS
ALTERNATOR: BRUSHLESS (WITH AVR)
NO OF PHASE: 3-PHASE, 4 WIRE
MAKE AND MODEL: KUBOTA D1503-K3A
NUMBER OF CYLINDER: 3
TYPE: SWIRL CHAMBER
TOTAL DISPLACEMENT: 1.499 L
RATED OUTPUT: 11.5 KW
SPEED: 1500 RPM
FUEL TANK CAPACITY: 58 L
FUEL CONSUMPTION (50%/75% LOAD): 1.9/2.4 L/HR
DIMENSIONS & WEIGHT
OVERALL LENGTH: 1480MM
OVERALL LENGTH: 650MM
OVERALL HEIGHT: 950MM
DRY WEIGHT: 520KG
SOUND LEVELS 7M: 56 dB
Mine Spec Options
Heavy Duty Bunded Skid $1,500-$2000
Fire Extinguisher $300
Battery Isolator $300
Outlets between $1200 - $1500
Call to discuss your requirements Blue Diamond
